IVES FB31P-12-MD US32D AUTOMATIC FLUSHBOLT METAL DOORS+EXTRA HARDWARE - $25 (Visalia)
QR Code Link to This Post

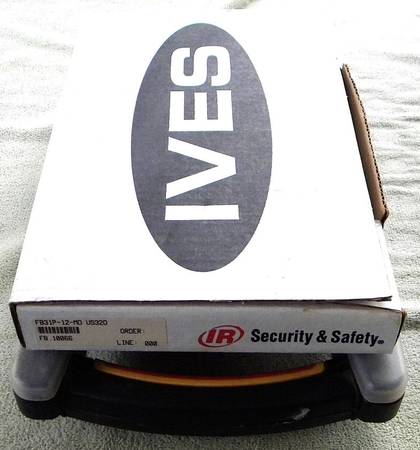

IVES FB31P-12-MD US32D AUTOMATIC FLUSHBOLT METAL DOORS+EXTRA HARDWARE. NEW (RETAILS FOR $170.00+) IN BOX BUT MISSING A COUPLE MINOR PARTS (SCREWS AND SUCH) WHICH ARE INCLUDED IN THE GREAT STUFFED FULL HARDWARE ORGANIZER THAT IS INCLUDED. EVERYTHING IN PHOTOS IS INCLUDED.
For use with metal doors only
Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened.
Low actuation forces—top bolt has no spring tension.
Non-handed.
Bolt throw is 3/4" with a 7/8" vertical adjustment.
Bolt backset is 3/4"
Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.
Certifications:
Meets ANSI A156.3 Type 25
Fits standard ANSI A115.4 door frame preparations.
UL Listed 3 Hour fire doors 8’0" X 10’0"
Mounting:
8-32 X 3/8" UFPHMS
10-12 X 1-1/4" Plastic anchor
6-32 X 3/8 FPHMS
6 X 3/4 FPHSMS
8 X 1 FPHSMS
10 X 1 FPHSMS
Material substrates: Brass and Stainless Steel
Body size: 1" Width x 6-3/4" length x 2" deep
Guide size: 1" Width x 1-27/32" length x 27/32" height x 3/32" thickness
Strike size: 15/16" Width x 2-1/4" length x 1/16" thickness
Rub plate size: 1-1/4" Width x 1-11/16" length x 3/64" thickness
$25.00
